Z-EUS IT™ Endoscopic Ultrasound Electrocautery Enhanced Delivery System
Z-EUS IT™ is a physician-controlled, one-hand device for draining a pancreatic pseudocyst or gallbladder via a transgastric or transduodenal approach
Z-EUS IT™ delivery system

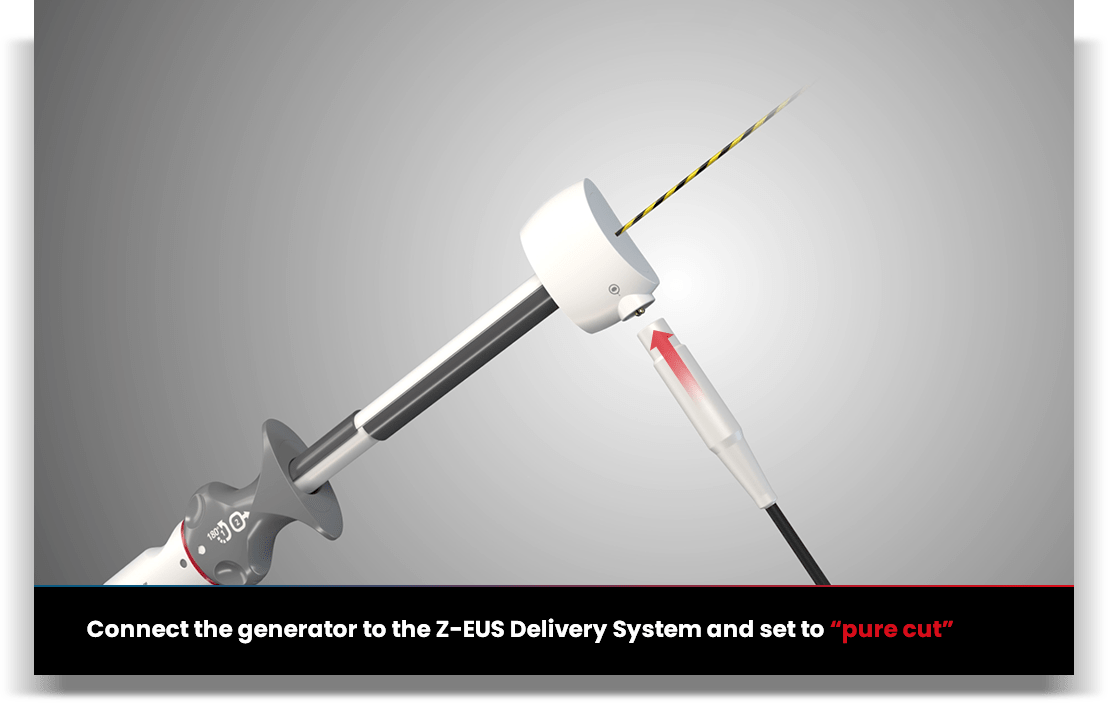

  • Connect the generator to the Z-EUS Delivery System and set to "pure cut"

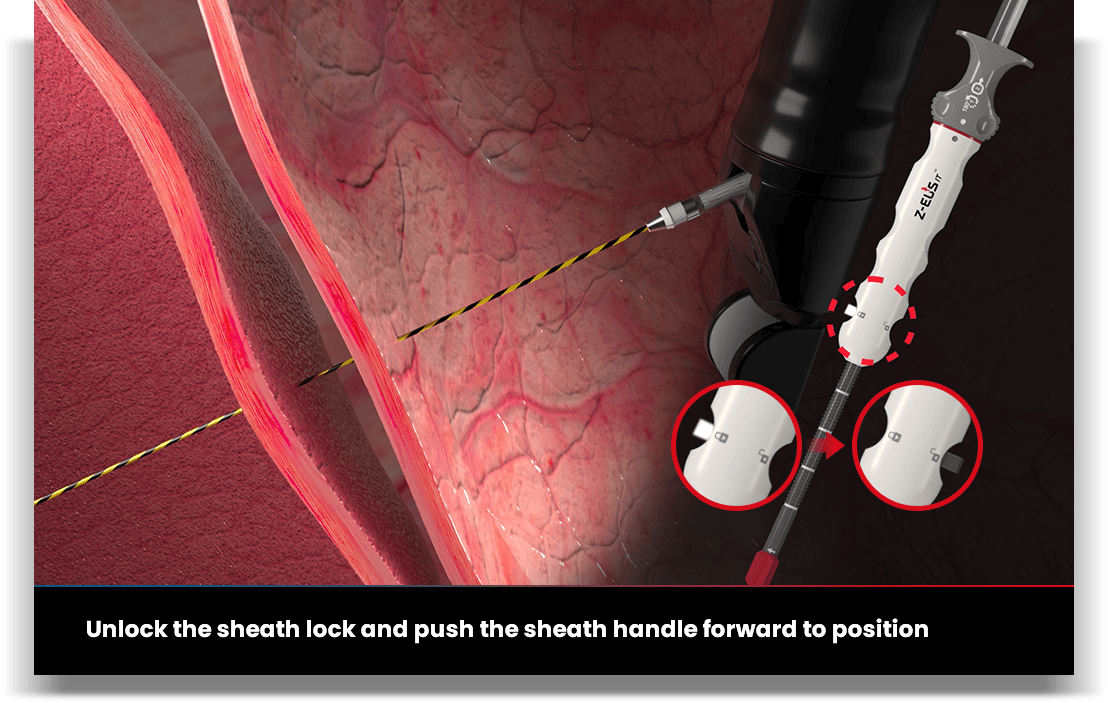

  • Unlock the sheath lock and push the sheath handle forward to position

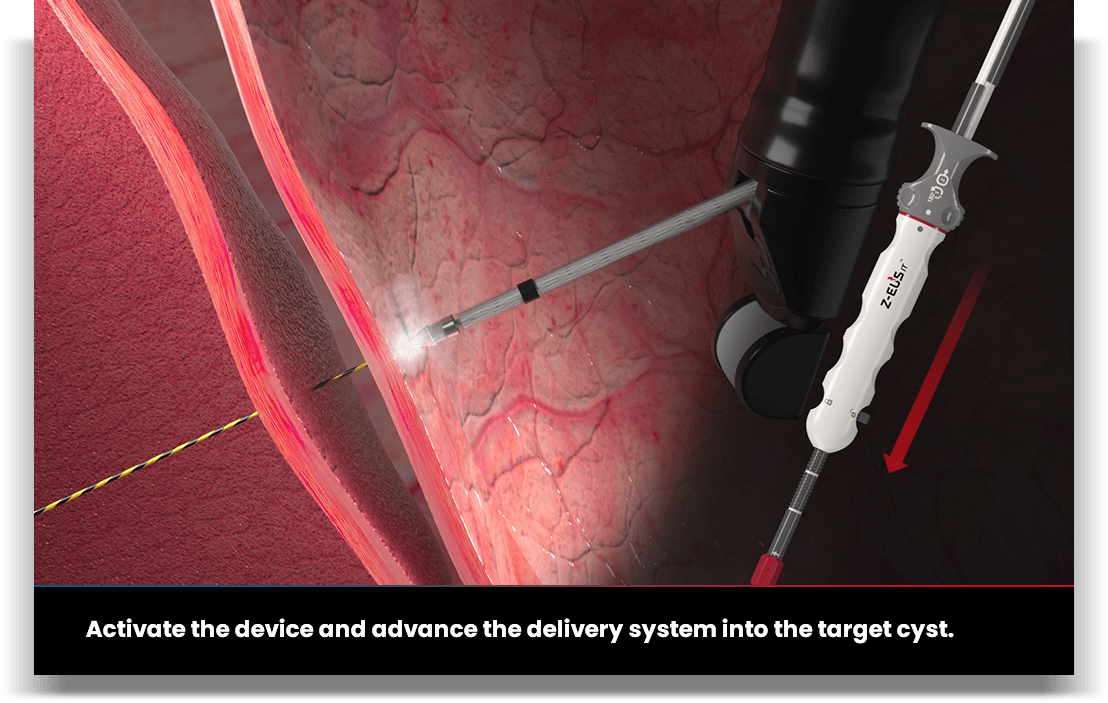

  • Activate the device and advance the delivery system into the target cyst

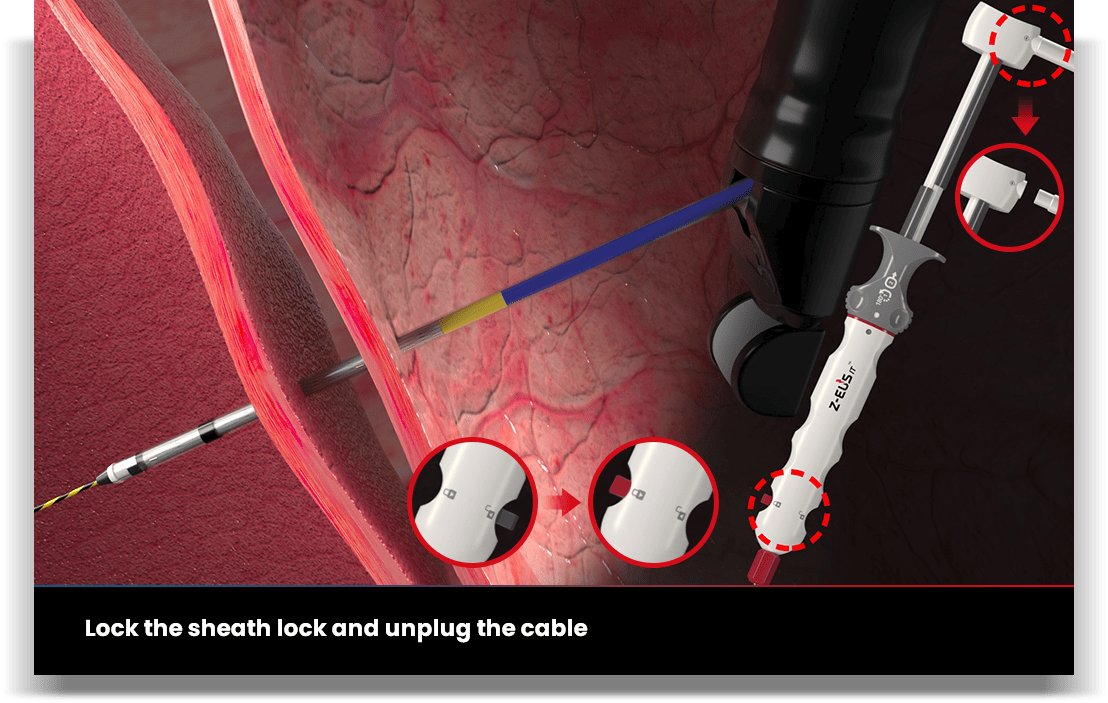

  • Lock the sheath lock and unplug the cable

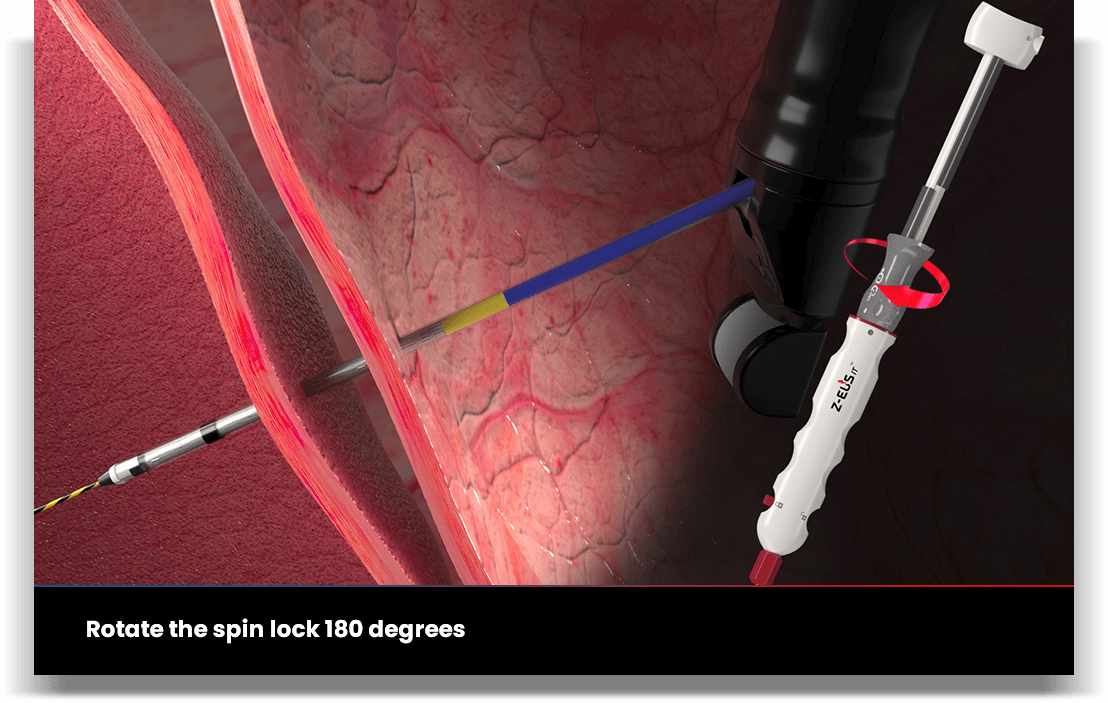

  • Rotate the spin lock 180 degrees

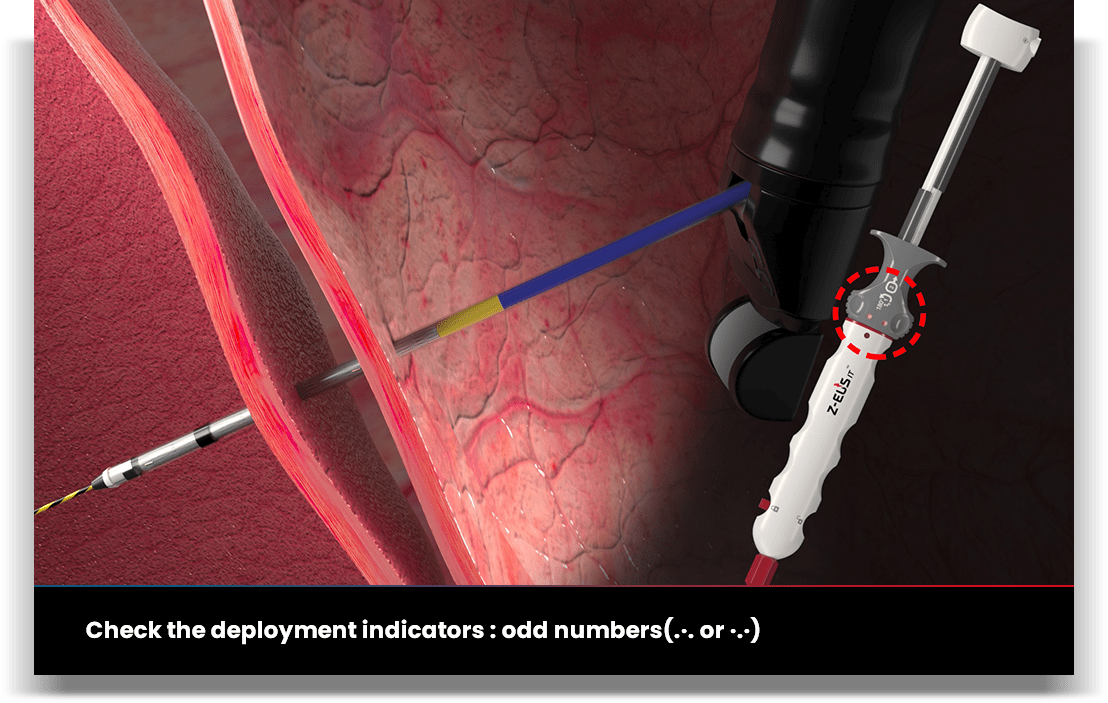

  • Check the deployment indicators: odd numbers

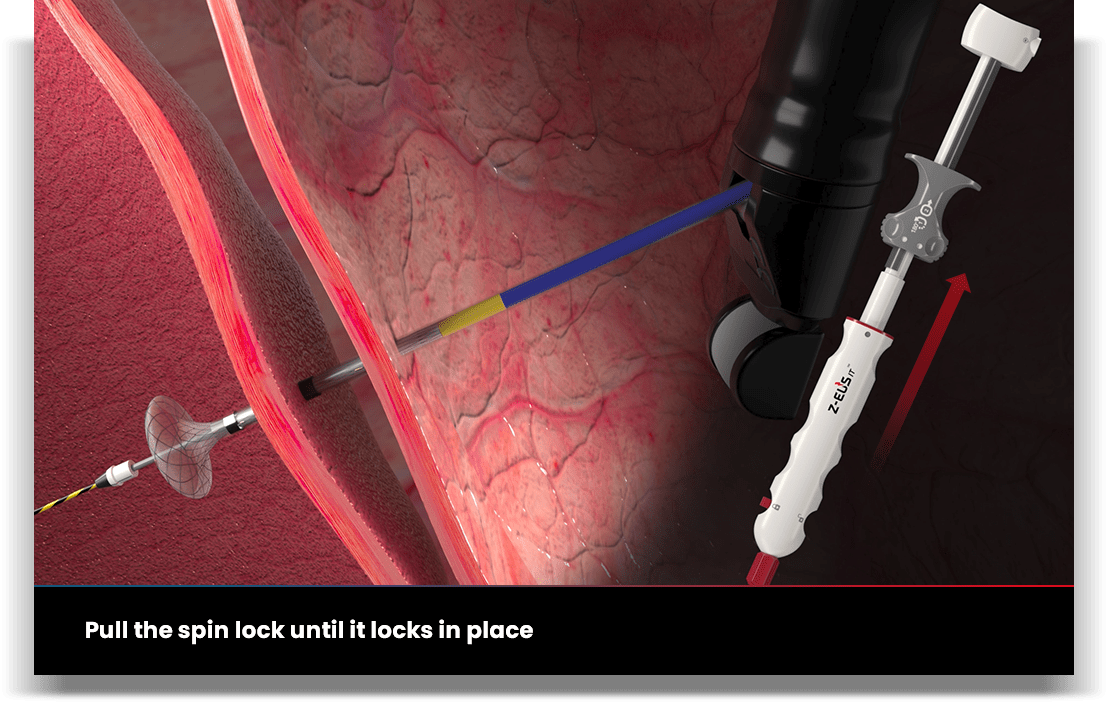

  • Pull the spin lock until it locks in place

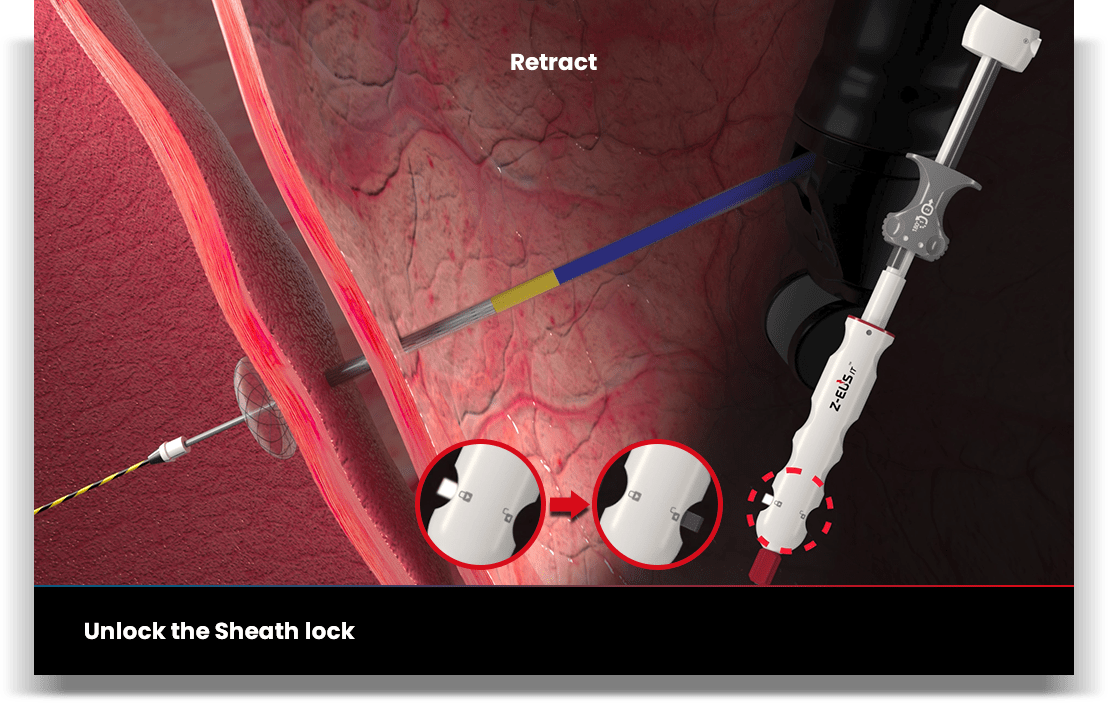

  • Retract: unlock the sheath lock

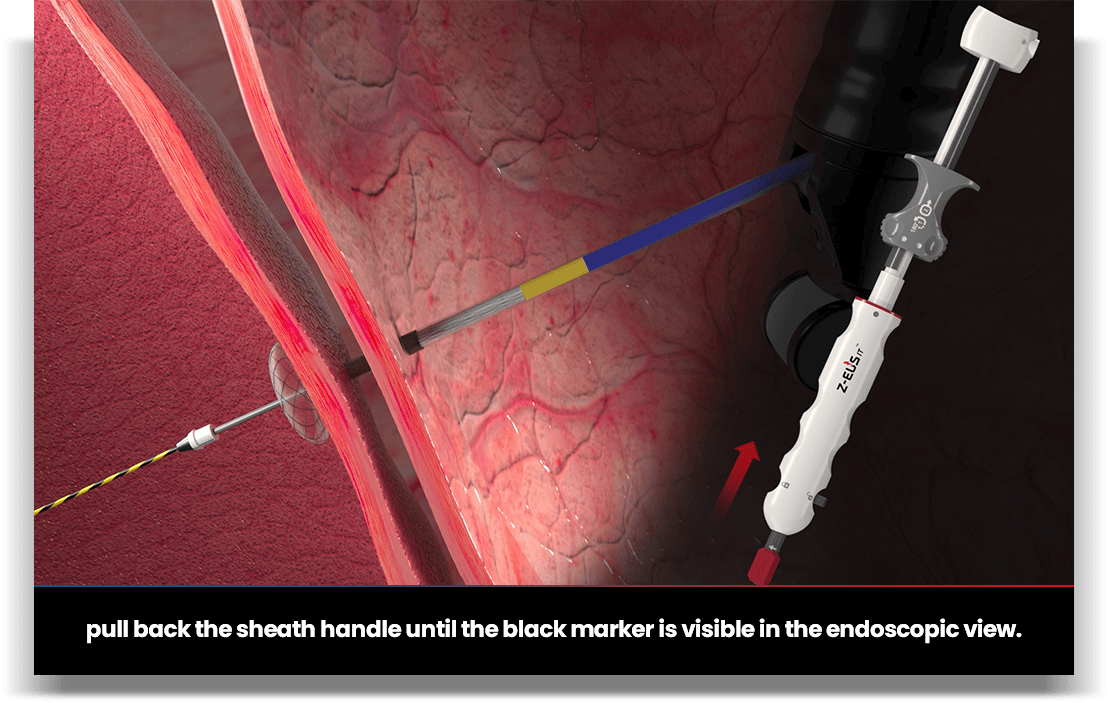

  • Pull back the sheath handle until the black marker is visible in the endoscopic view

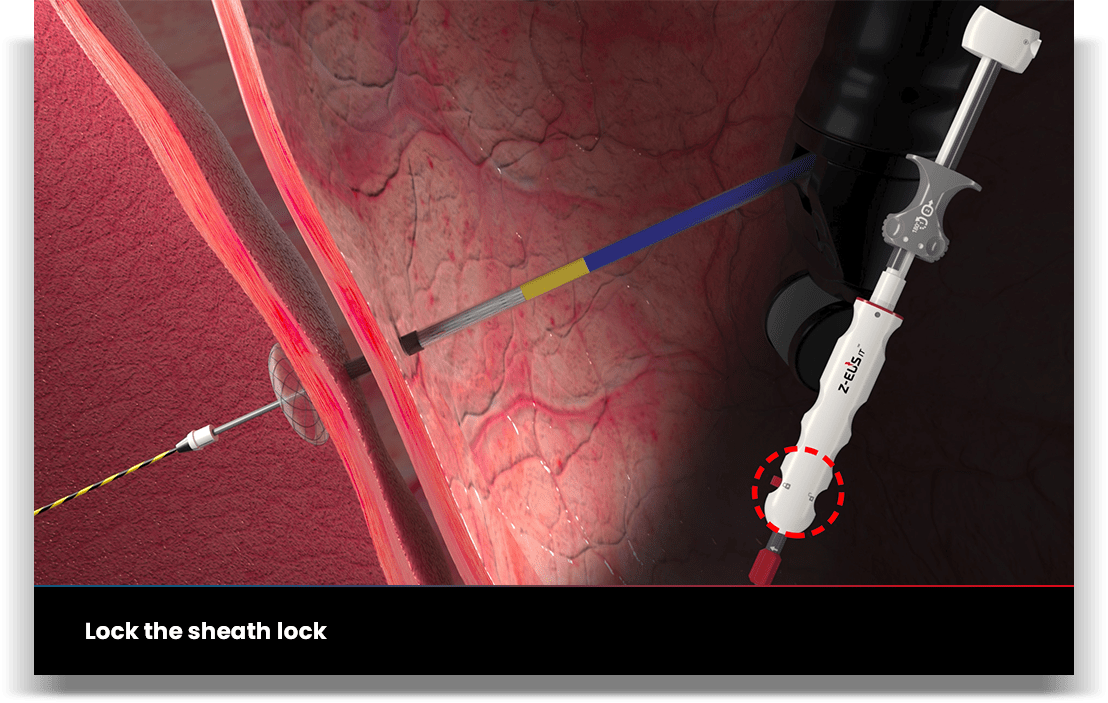

  • Lock the sheath lock

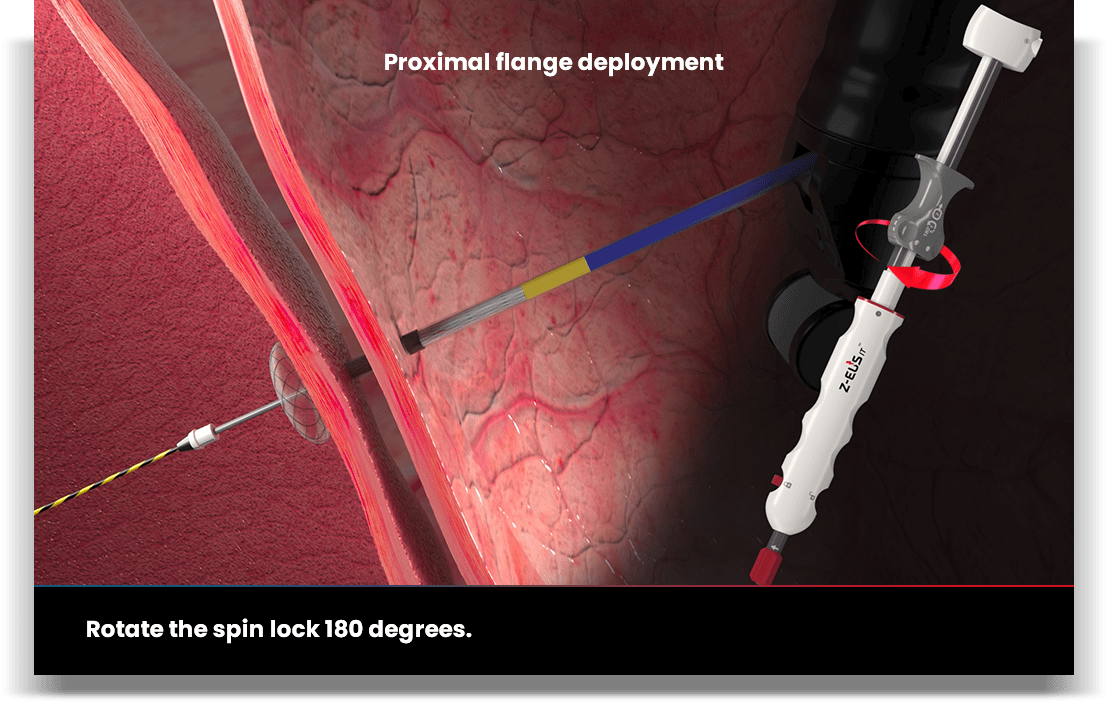

  • Proximal flange deployment: rotate the spin lock 180 degrees
  • Check the deployment indicators: even numbers
  • Move the spin lock toward the physician

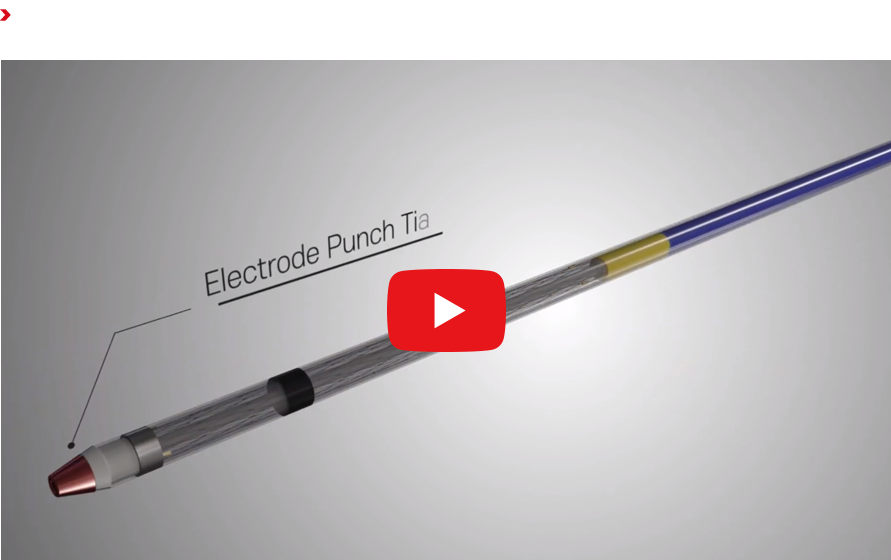

Play video: Introduction Video (procedure steps included)

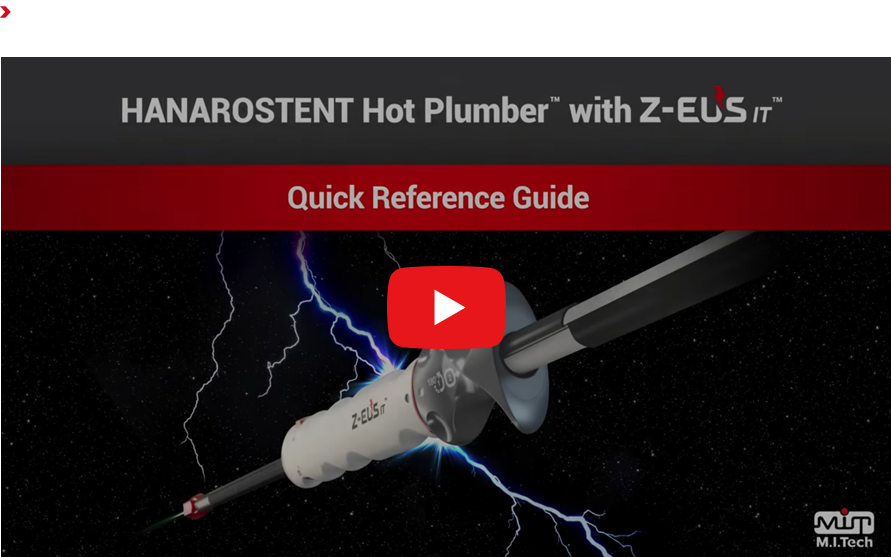

Play video: Handle Manipulation – HANAROSTENT Hot Plumber™ with Z-EUS IT™ Quick Reference Guide

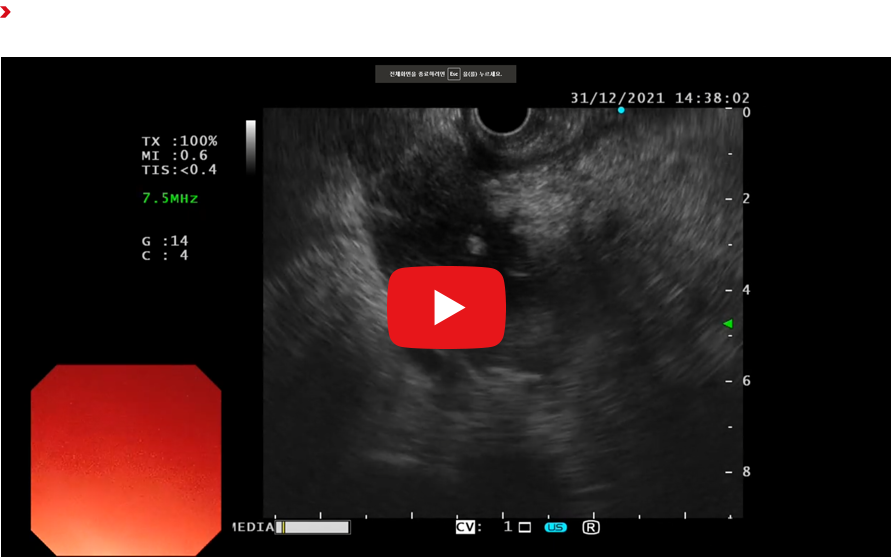

Play video: EUS-guided WOPN

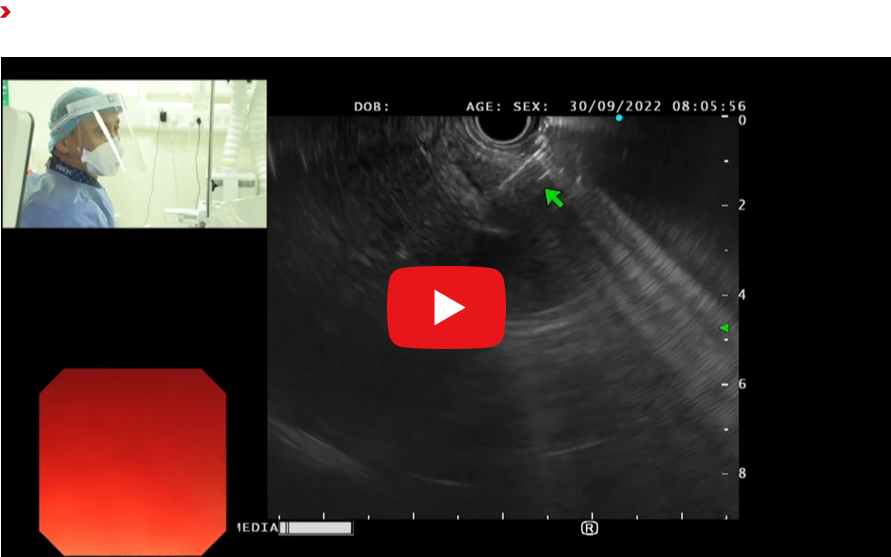

Play video: EUS-guided HJ drainage

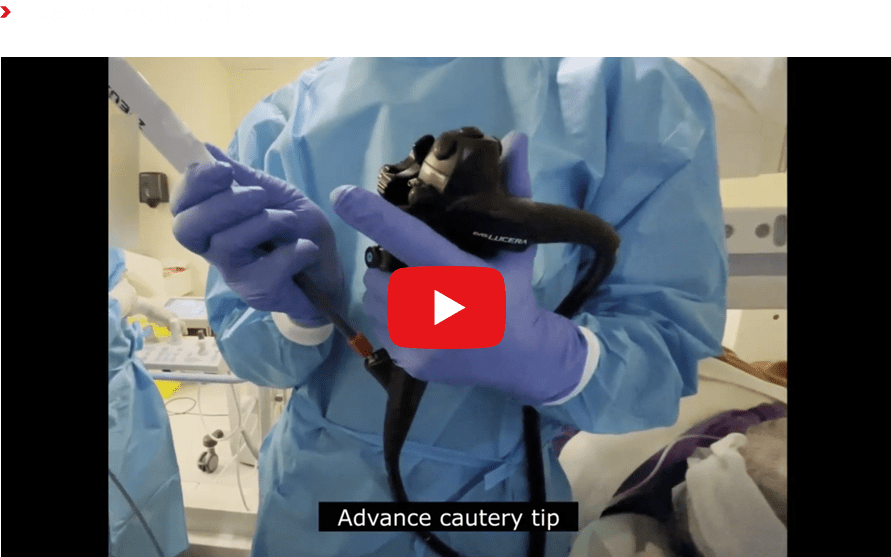

Play video: EUS-guided EGBD

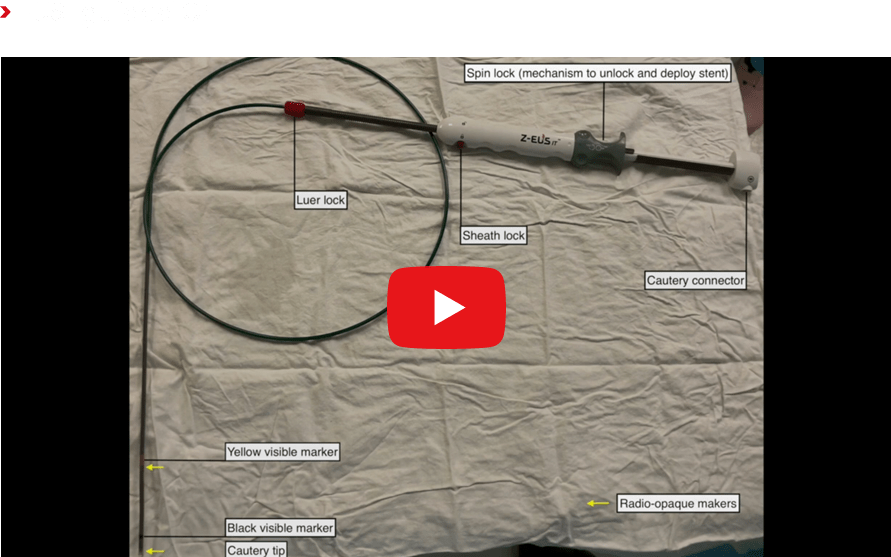

Play video: EUS-guided GE
Play video: 2022 UEGW | Booth Lecture by Prof. Anthony Y.B. Teoh (HK)

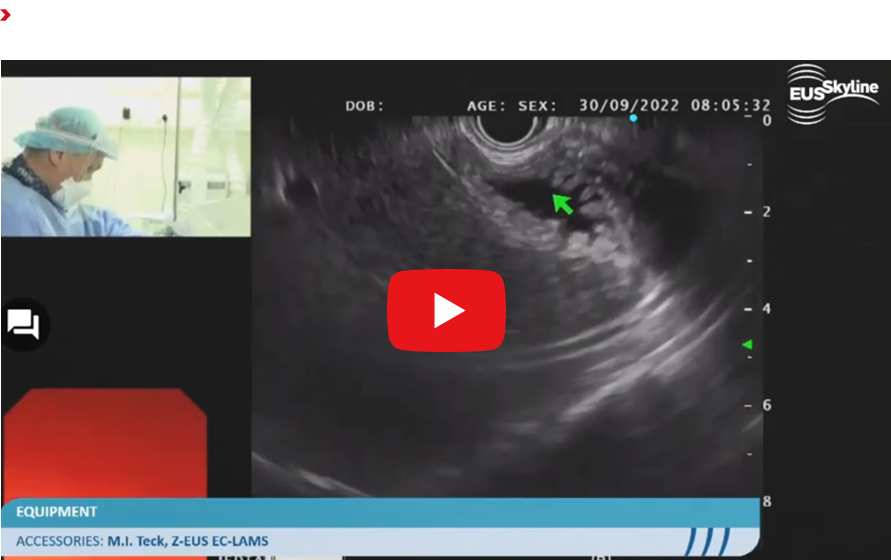

Play video: 2022 EUS Skyline | Live Demo by Prof. Anthony Y.B. Teoh (HK)

M.I.Tech logo, Q&A button and menu button
Menu: Z-EUS IT™, Key Features, Ordering Information, Quick Reference Guide, Animal Test, Video Archive
Video menu: Z-EUS IT™ Animation, Handle Manipulation, Prof. Anthony Teoh Case, Conferences & Live Demo
Illustration of a Z-EUS IT™ electrocautery tip with lightning placing a stent through the tissue wall
Z-EUS IT™ Endoscopic Ultrasound Electrocautery Enhanced Delivery System
Z-EUS IT™ is a physician-controlled, one-hand device for draining a pancreatic pseudocyst or gallbladder via a transgastric or transduodenal approach
Z-EUS IT™ delivery system

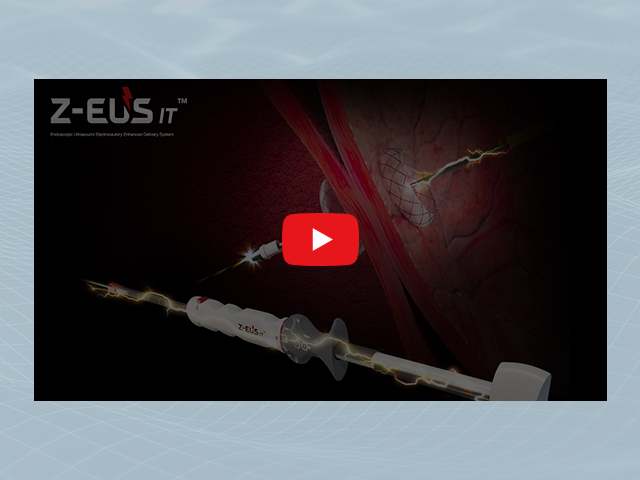

Play video: Z-EUS IT™ introduction

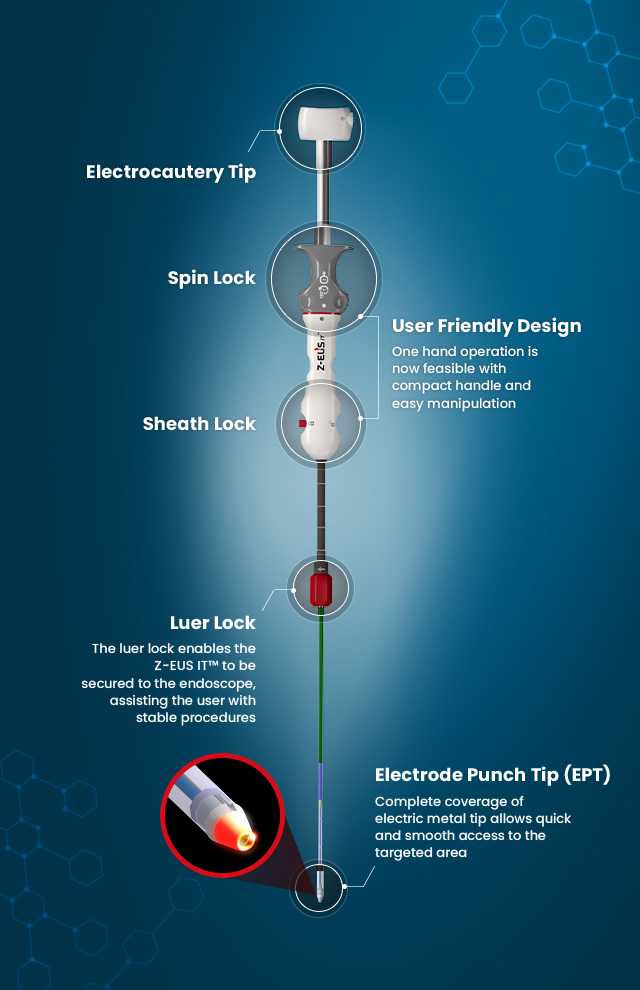

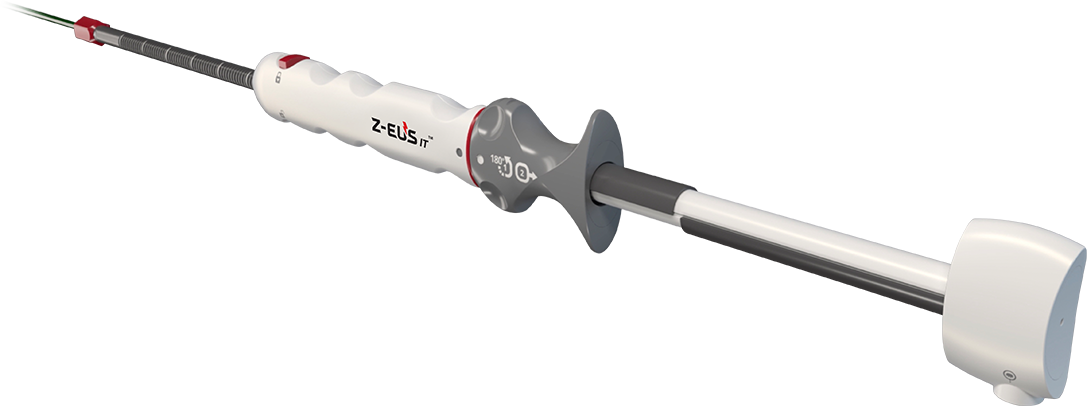

Z-EUS IT™ parts: Electrocautery Tip, Spin Lock, Sheath Lock, Luer Lock, Electrode Punch Tip (EPT); compact handle for one-hand operation

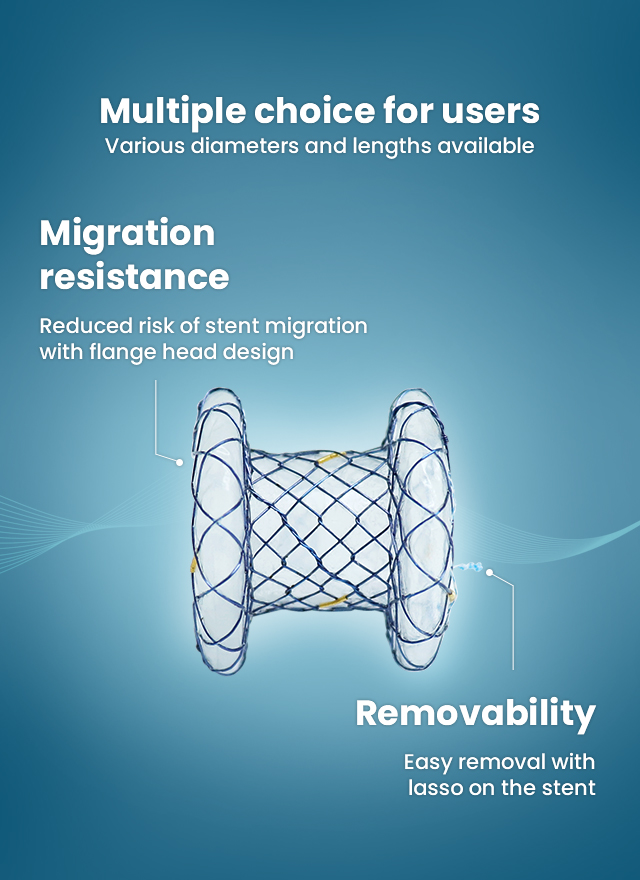

Stent features: multiple diameters and lengths, migration resistance with flange head design, easy removal with lasso

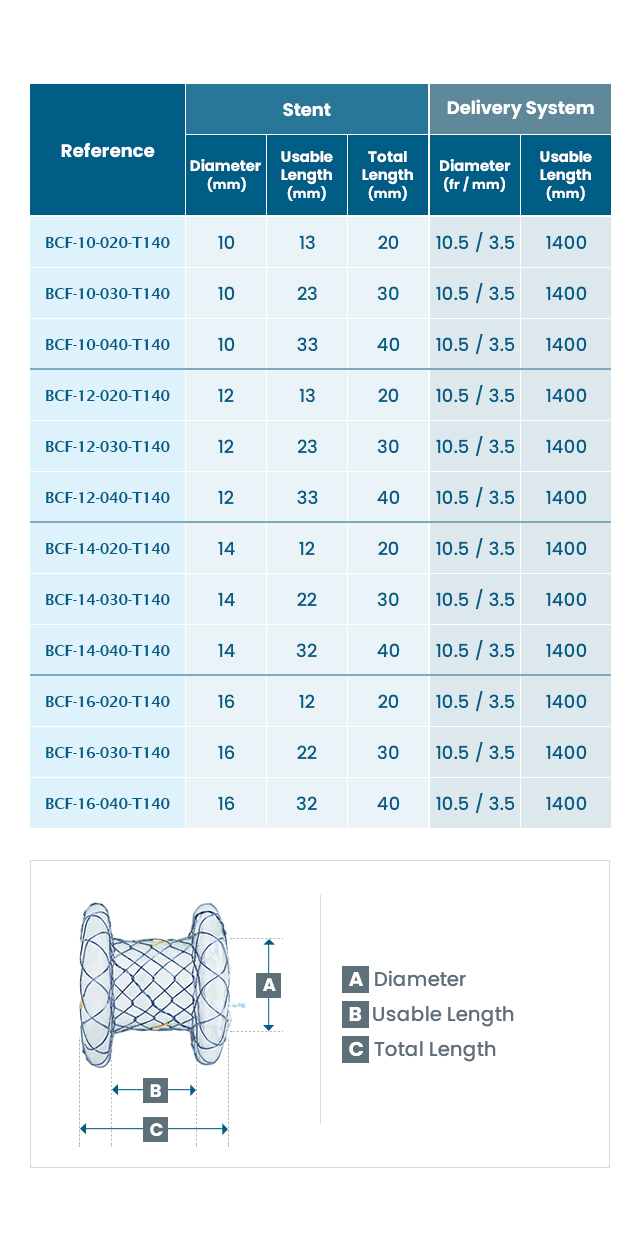

Ordering information: BCF stents, diameter 10–16 mm, total length 20–40 mm; delivery system 10.5 Fr, 1400 mm
Z-EUS IT™ procedure: Ready – device installation, SET – approach to the target, GO – stent deployment, FINISH – device removal
  • Connect the generator to the Z-EUS Delivery System and set to "pure cut"
  • Unlock the sheath lock and push the sheath handle forward to position
  • Activate the device and advance the delivery system into the target cyst
  • Lock the sheath lock and unplug the cable
  • Rotate the spin lock 180 degrees
  • Check the deployment indicators: odd numbers
  • Pull the spin lock until it locks in place
  • Retract: unlock the sheath lock
  • Pull back the sheath handle until the black marker is visible in the endoscopic view
  • Lock the sheath lock
  • Proximal flange deployment: rotate the spin lock 180 degrees

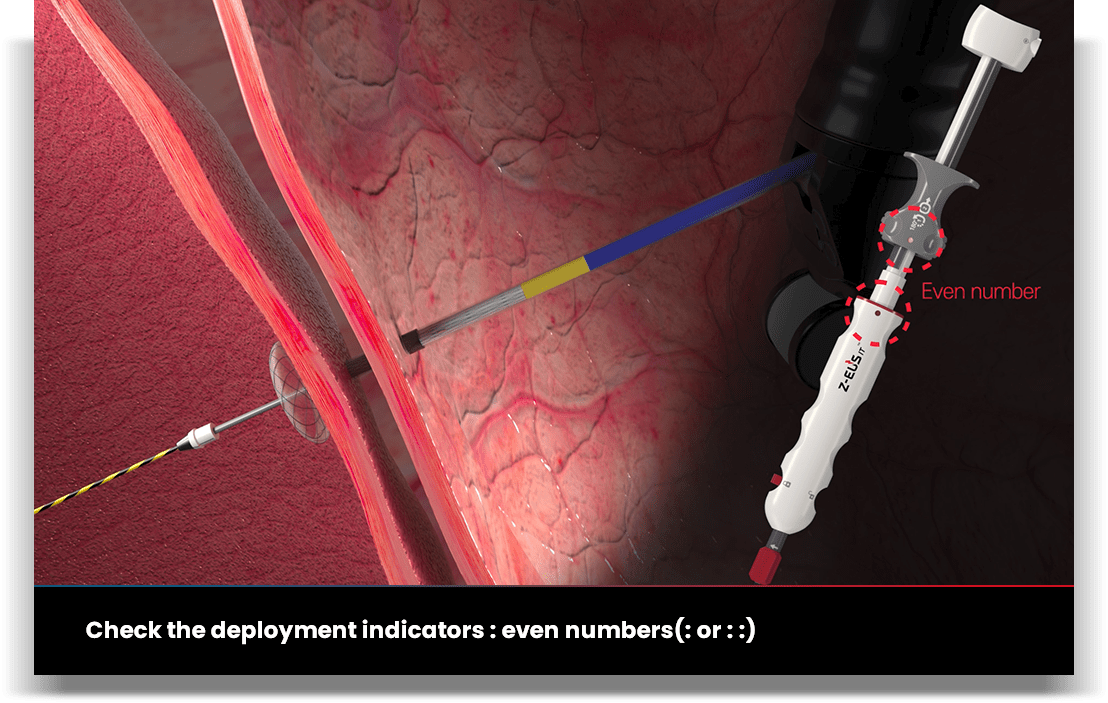

  • Check the deployment indicators: even numbers

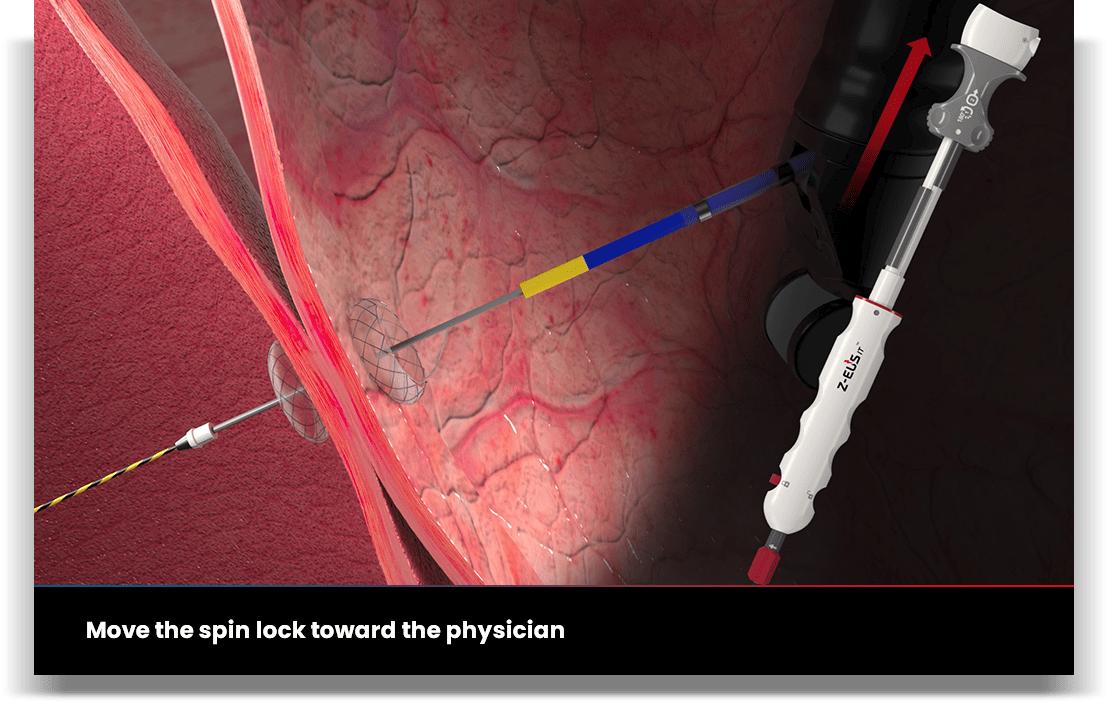

  • Move the spin lock toward the physician

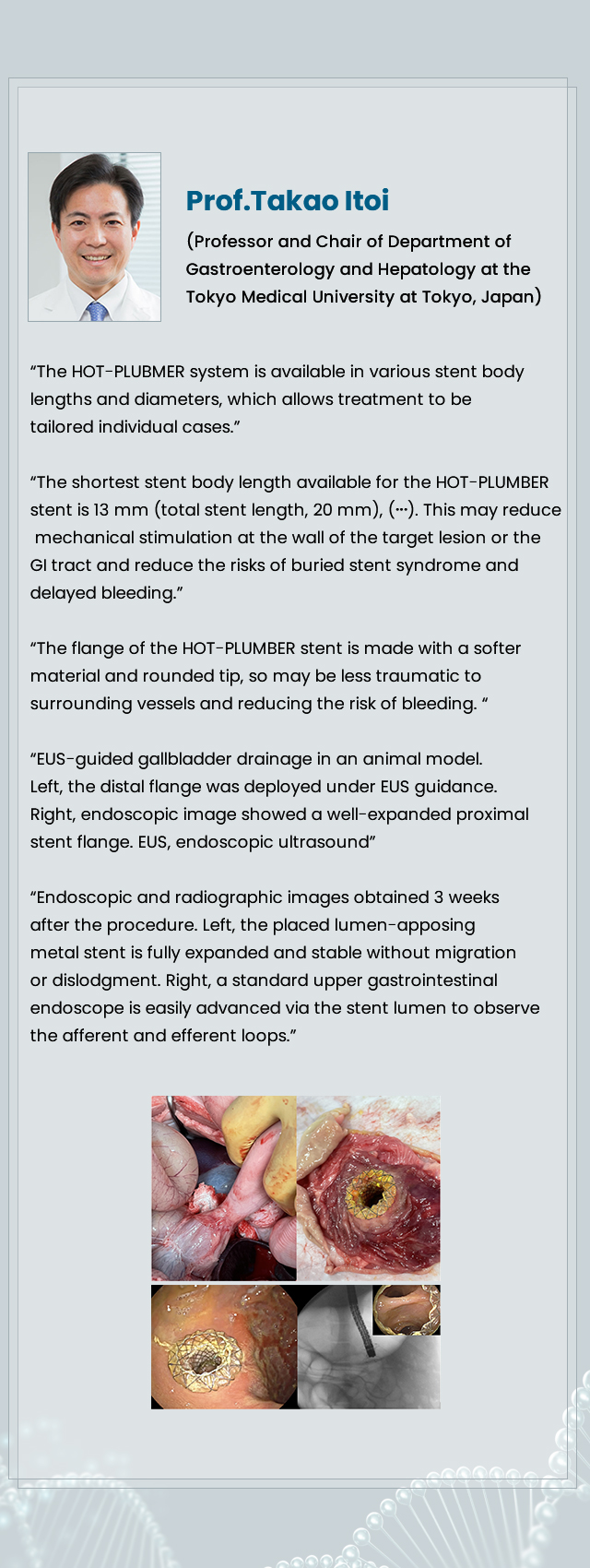

Prof. Takao Itoi (Tokyo Medical University) on the HOT-PLUMBER stent, with animal model endoscopic images
Video menu: Z-EUS IT™ Animation, Handle Manipulation, Prof. Anthony Teoh Case, Conferences & Live Demo

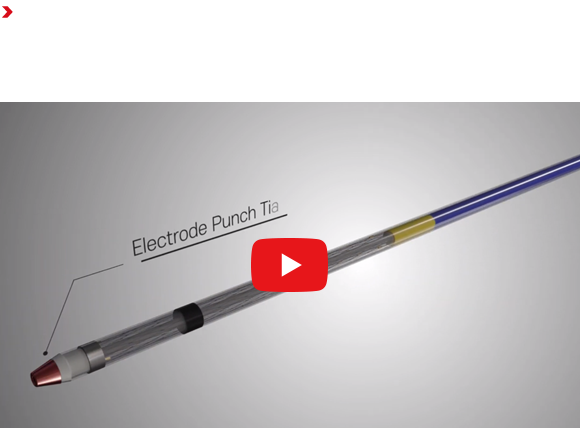

Play video: Introduction Video (procedure steps included)
Play video: Handle Manipulation – HANAROSTENT Hot Plumber™ with Z-EUS IT™ Quick Reference Guide
Play video: EUS-guided WOPN
Play video: EUS-guided HJ drainage
Play video: EUS-guided GE
Play video: EUS-guided WOPN
Play video: 2022 UEGW | Booth Lecture by Prof. Anthony Y.B. Teoh (HK)
Play video: 2022 EUS Skyline | Live Demo by Prof. Anthony Y.B. Teoh (HK)
Z-EUS IT™ Video Archive: Z-EUS IT™ Animation Z-EUS IT™ Video Archive: Handle Manipulation Video Z-EUS IT™ Video Archive: Prof. Anthony Teoh Case Video Z-EUS IT™ Video Archive: Conferences & Live Demo Video
